MAXSTAR 150 STL
Best of class - Provides maximum portability and performance in most compact TIG/Stick packages in the industry. Dependability and performance all in one machine. Also see Maxstar 150 S Stick-only Package.

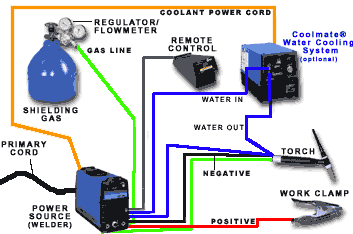

Note: Most common weld output connection shown
|
TIG (GTAW) System Checklist
|
|
| System Item |
Model |
Stock No. |
Price |
| Required Items |
|
|
|
| Power Source |
|
|
|
| TIG Torch |
|
|
|
| Tungsten |
|
|
|
| Remote Control Device |
|
|
|
| Work Cable, Work Clamp and Lugs |
|
|
|
| Primary Cable, Plug/Receptacles |
|
|
|
| Gas Hose w / fittings |
|
|
|
| Gas Regulator / Flowmeter |
|
|
|
| Shielding Gas |
|
|
|
| Filler Metal - Size & Type |
|
|
|
| Helmet/Glove/Scratch Brush |
|
|
|
| Optional Items - where applicable |
|
|
|
| Water Cooler |
|
|
|
| Miller Coolant |
|
|
|
| Water Hose Hook-up Kit |
|
|
|
| High Frequency Unit |
|
|
|
| Running Gear |
|
|
|
|
|
 |
 |
 |
List Price
Starting at:
$ 949.00 (US $) |
|
|
 |
- Lift-Arc™ TIG (GTAW)
- Stick (SMAW)
|
 |
Light Industrial Applications- Dairy Industry
- Food/Beverage Industry
- Restaurant/Kitchen Repair
- Experimental Aircraft
- Steel Building Erection
- Shipboard Installation/Repair
- Maintenance and Repair
|
 |
Rated Output
- 70 A at 22.8 VDC(Stick), 115 VAC
- 100 A at 14.0 VDC(TIG), 115 VAC
- 100A at 24.0 VDC(Stick), 230 VAC
- 100A at 14.0 VDC(TIG), 230 VAC
- 100% Duty Cycle
Output Power Range
- 5 - 150 A (TIG), 115 VAC
- 20 - 110 A (Stick), 115 VAC
- 5 - 150 A (TIG), 230 VAC
- 20 - 150 A (Stick), 230 VAC
|
 |
- Power Source with cord
- 13 ft (4m) Stick electrode holder
- 10 ft (3 m) work clamp
- Shoulder strap
|
|
