BOBCAT 225 NT
Economical engine drive designed for rugged use, with generator power available while welding. This unit is great for farm, ranch, construction or as a stand-alone generator.



More Product Info
 Accessories  Models and Pricing  Owner's Manual
 True Blue Warranty  System Checklist  Want a Quote?
 Millermatic Buyer's Guide  Download Spec Sheet (pdf)  Competitive Comparison


TIG System Checklist

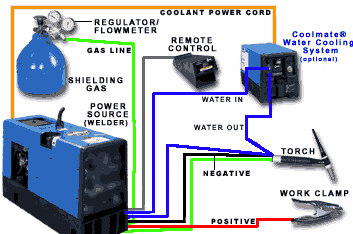

TIG (GTAW) System Checklist
System Item Model Stock No. Price
Required Items
Power Source
TIG Torch
Tungsten
Remote Control Device
Work Cable, Work Clamp and Lugs
Primary Cable, Plug/Receptacles
Gas Hose w / fittings
Gas Regulator / Flowmeter
Shielding Gas
Filler Metal - Size & Type
Helmet/Glove/Scratch Brush
Optional Items - where applicable
Water Cooler
Miller Coolant
Water Hose Hook-up Kit
High Frequency Unit
Running Gear


List Price
Starting at:
$ 3,357.00 (US $)
  • Stick (SMAW)
  • Flux Cored (FCAW) *
  • DC TIG (DC GTAW)
  • MIG (GMAW) *
  • Non-Critical AC TIG (GTAW)
* with voltage-sensing feeder
Industrial Applications
  • Maintenance
  • Farm and Ranch
  • Structural
Rated Output at 104° F (40°C)
  • CC-AC: 225 A at 25 V, 100% Duty Cycle
  • CC-DC: 210 A at 25 V, 100% Duty Cycle
  • CV-DC: 200 A at 20 V (17 - 28 Load V), 100% Duty Cycle

Output Power Range
  • DC Stick: 50 - 210 Amps
  • FCAW/MIG (CV): 17-28 volts

Generator Power- rated at 104°F (40°C)
  • 10,000 Watts Peak, 9500 Continuous

Net Weight
  • 512 lb (238 kg)

Engine
  • Kohler 20 HP at 3600 RPM (Gas)
