DYNASTY 200
Maximum flexibility - Miller Electric combines advanced inverter technology with Auto-Line™ technology, offering the most flexible AC/DC TIG/Stick power supply in the welding industry.




TIG System Checklist

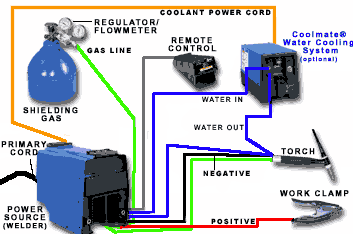

Note: Most common weld output connection shown
TIG (GTAW) System Checklist
System Item Model Stock No. Price
Required Items
Power Source
TIG Torch
Tungsten
Remote Control Device
Work Cable, Work Clamp and Lugs
Primary Cable, Plug/Receptacles
Gas Hose w / fittings
Gas Regulator / Flowmeter
Shielding Gas
Filler Metal - Size & Type
Helmet/Glove/Scratch Brush
Optional Items - where applicable
Water Cooler
Miller Coolant
Water Hose Hook-up Kit
High Frequency Unit
Running Gear


List Price
Starting at:
$ 2,680.00 (US $)
  • TIG (GTAW)
  • Pulsed TIG (GTAW-P) with DX model only
  • Stick (SMAW)

Industrial to Heavy Industrial Apps
  • Petro/Chem Fabrication
  • Aerospace
  • Food/Beverage Industry
  • Mechanical Contractors
  • Shipboard Installation/Repair
  • Dairy Industry

Input Power
  • Requires 3- or 1-Phase Power

Rated Output
  • TIG: 150 A at 16 V, 60% duty cycle
  • Stick: 130 A at 25.2 V, 60% duty cycle

Output Power Range
  • 1-200 Amps

Net Weight
  • 45 lb (20.5 kg)
