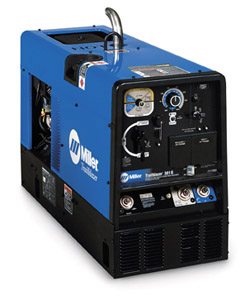

TRAILBLAZER 301 G
Designed for the professional welder who needs a machine with excellent arc performance for all types of welding jobs.






TOUGH Inside

Active Field Current Control
Machine makes small adjustments to increase overall arc performance in all conditions and weld processes. View Video >>

Smart Fuel Tank
Fueling is easy with the smart fuel tank since it minimizes the chance of fuel backflow. View Video >>

Four Pole - Three Phase Weld Output
True multiprocess CC or CV output is perfect for the professional welder, producing X-ray quality Stick, MIG, and TIG welds. Its four pole, three phase welding arc is the smoothest, most stable arc in its class. View Video >>

Alternator / Generator
Our alternator and generator are comprised of iron and copper to stand up to the challenges of your welding needs.

Engine Save Start
Idles engine 3-4 seconds after starting to extend engine life and reduce fuel consumption.

Features

Improved MIG/FCAW performance rated at 300 amps means there is power to run higher amperage wires used in heavy plate, pressure vessels, seismic applications, etc. and still run smooth short arc on thin gauges.

More DIG for Stick welding improves E6010 performance while maintaining a great E7018.

Improved DC TIG scratch starts minimize tungsten contamination.

AC TIG arc on 301 models is smooth and similar to squarewave. 225 amp output improves peformance on thicker materials while 35 amps on the low end will weld 20 gauge aluminum.

Automatic idle in all processes, including MIG/FCAW, to save fuel and reduce noise.

Engine Save Start (gasoline engines) idles engine seconds after starting to extend engine life and reduce fuel consumption and noise.

Remote toolless oil drain extends past base to reduce service time and oil spillage.

Standard 14-pin receptacle for simple connection of remote controls and wire feeders.

Industry-leading 10,000-watt peak power is independent of weld rheostat setting; 9500 watts is continuous.

Seperate weld and power generators means no interaction between grinders, power tools, etc. and welding arc. Also, strong power is available while welding.

Patented Advanced Active Field Control technology boasts a simple and reliable way of accurately controlling the generator's weld output.

List Price
Starting at:
$ 4,177.00 (US $)

Compare Our Best Selling Gas Engine Drives


  • AC/DC Stick (SMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • AC/DC TIG (GTAW)
  • Air Carbon Arc (CAC-A) Cutting and Gouging (3/16 in carbons)
  • Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models
Industrial Applications
  • Fabrication
  • Structural Steel Work
  • Process Plant Piping
  • Sheet Metal
  • Maintenance
Rated Output at 104° F (40°C)
  • DC Stick/TIG: 280 A at 25V, 100% Duty Cycle
  • MIG/FCAW: 300 A at 25V, 100% Duty Cycle
  • AC TIG: 200 A at 25V, 60% Duty Cycle

Output Power Range
  • DC Stick/TIG: 20 - 300 Amps
  • AC TIG: 35-225 Amps
  • MIG/FCAW: 10 - 33 V, up to 325 Amps

Generator Power- rated at 104°F (40°C)
  • 10,000 Watts Peak- 9,500 Watts Continuous

Net Weight
  • 560 lb (254 kg)

Engine
  • Kohler 20 HP at 3600 RPM (Gas or LP)
  • Onan 20.5 HP at 3600 RPM (Gas)
