SPECTRUM 1250







Pilot Arc Switch
The expanded metal mode allows operator to cut grates, chain link fence, and other perforated metals without retriggering the gun.

Features

With a rated cutting capacity of 1-1/4 in (31.8 MM) on mild or stainless steel, and 1 in (25.4 mm) on aluminum, this unit has the power to handle the heaviest plasma applications.

Three-phase system delivers day-in, day-out performance for production work in fabrication and manufacturing shops.

Offers a powerful gouging arc for those heavy-duty metal displacement jobs plus piercing capabilities up to 1 in steel.

Postflow cooling circuit extends the life of consumables and torch by cooling them with postflow air after trigger is released.

List Price
Starting at:
$ 6,112.00 (US $)
Heavy Industrial Applications
  • Heavy Fabrication
  • Manufacturing
  • Automation

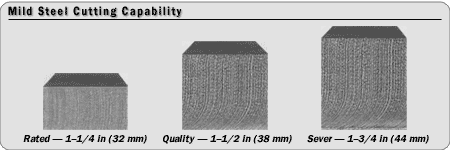

Cutting Capability
  • Rated: 1-1/4 in (31.8 mm)
  • Quality: 1-1/2 in (38 mm)
  • Sever: 1-3/4 in (44 mm)

Rated Output
  • 100 A at 120 VDC, 80% Duty Cycle

Plasma Gas Flow/Pressure
  • 7.0 CFM (170 L/min) at 70 PSI (442 kPa)

Net Weight
  • 410 lb (185 kg)


  • Plasma cutter
  • ICE-100 hand-held torch with 30 ft (9 m) or 50 ft (15.2 m) torch cable; or ICE-100M machine-held torch with 50 ft (15.2 m) torch cable
  • 30 ft (9 m) work cable with clamp
  • Torch consumable kit
